Managing Policies in Oracle Cloud Infrastructure

The Oracle Cloud Infrastructure policy specifies who has access to which resources in OCI. Policies simply allow a group to manage certain types of resources in a specific compartment in certain ways.

Policy basic Syntax:

Allow group <group_name> | <group_ocid> to <verb> <resource-type> in compartment <compartment_name>

Allow group <group_name> | <group_ocid> to <verb> <resource-type> in tenancy

Verbs:

inspect: Resource listing without access to confidential information or user-specified metadata.
read: It includes inspect as well as the ability to get user-specified metadata as well as the resource itself.
use: Includes reading and working with existing resources. Includes updating the resource, except for resource types where “update” has the same effect as “create”. In general, this verb doesn’t include the ability to create or delete.
manage: Includes all permissions associated with the resource.

Resource types:

all-resources: All Oracle Cloud Infrastructure resource-types
compute-management-family: Compute
database-family: Autonomous Database, Bare Metal and Virtual Machine DB Systems
virtual-network-family: Networking

Here are few Policy examples that I have come across with my projects

Allow group TEST_GROUP to manage virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to use virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage object-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read metrics in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage log-groups in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage log in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read instance-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read object-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read all-resources in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to use virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage virtual-network-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to use volume-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage volume-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage instance-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage cloud-shell in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage mount-targets in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage file-systems in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to read file-systems in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage mount-targets in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to inspect file-systems in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage load-balancers in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage file-systems in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage mount-targets in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage export-sets in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage cloud-shell in tenancy

Allow group TEST_GROUP to manage bastions in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage groups in tenancy

Allow group TEST_GROUP to manage vaults in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage keys in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage alarms in tenancy

Allow group TEST_GROUP to manage metrics in tenancy

Allow group TEST_GROUP to manage bastion-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage tag-namespaces in tenancy

Allow group TEST_GROUP to read users in tenancy

Allow group TEST_GROUP to inspect users in tenancy

Allow group TEST_GROUP to use users in tenancy

allow group TEST_GROUP to manage dynamic-groups in tenancy

Allow group TEST_GROUP to manage instance-family in compartment TEST_COMPARTMENT where request.resource.shape = 'VM.Standard.E2.1.Micro'

Allow group TEST_GROUP to read instance-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to use virtual-network-family in compartment TEST_COMPARTMENT

allow group TEST_GROUP to manage bastions in compartment TEST_COMPARTMENT

Allow group Policy_Testing_group to manage users in compartment TEST_COMPARTMENT

Allow group Policy_Testing_group to manage groups in compartment TEST_COMPARTMENT

Allow group Policy_Testing_group to manage policies in compartment TEST_COMPARTMENT

allow group Policy_Testing_group to manage compartments in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage groups in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage policies in compartment TEST_COMPARTMENT

allow group TEST_GROUP to use cloud-shell in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage autonomous-database-family in compartment TEST_COMPARTMENT

Allow group TEST_GROUP to manage db-systems in compartment TEST_COMPARTMENT

Happy Learning !!

Oracle Cloud Infrastructure – File System storage service FSS

Leave a reply

Let us see how to create the file storage service in the Oracle Cloud (OCI) and mount it via NFS to the Linux VM.

We can create a shareable file system using FSS to make it highly available.

File System Storage Service

Oracle Cloud Infrastructure File Storage Service provides a durable, scalable, distributed, enterprise-grade network file system. You can connect to a File Storage Service file system from any bare metal, virtual machine, or container instance in your Virtual Cloud Network (VCN). You can also access a file system from outside the VCN using Oracle Cloud Infrastructure FastConnect and Internet Protocol security (IPSec) virtual private network (VPN).

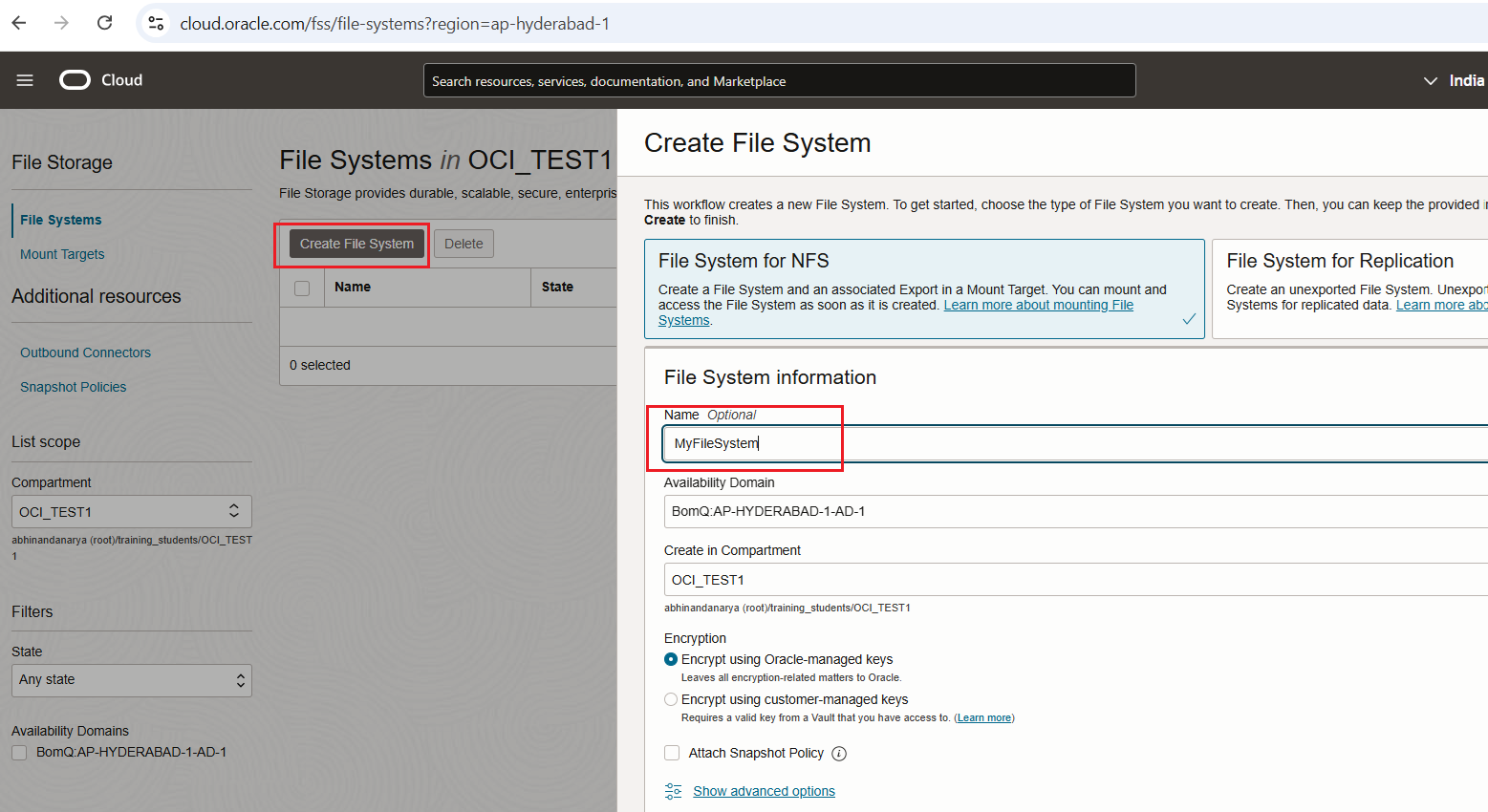

Create the file system service in the Oracle Cloud. Navigate to: Storage -> File Systems. Click “Create…”

Provide File System Name

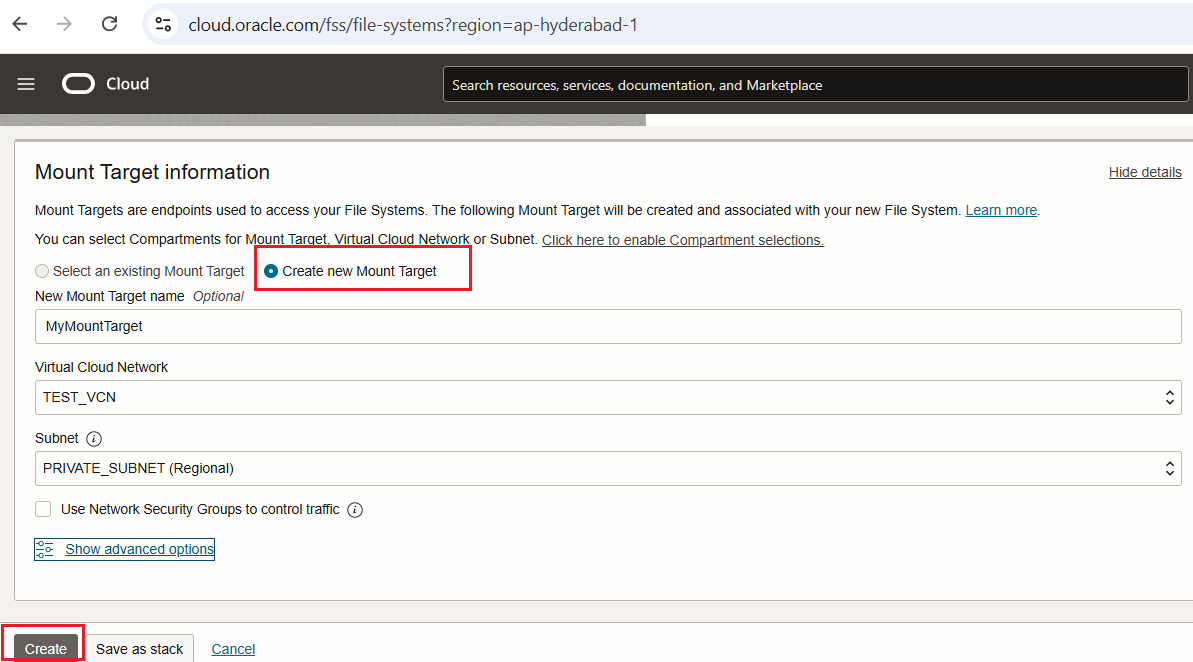

Create New Mount Target and provide Mount Target Name

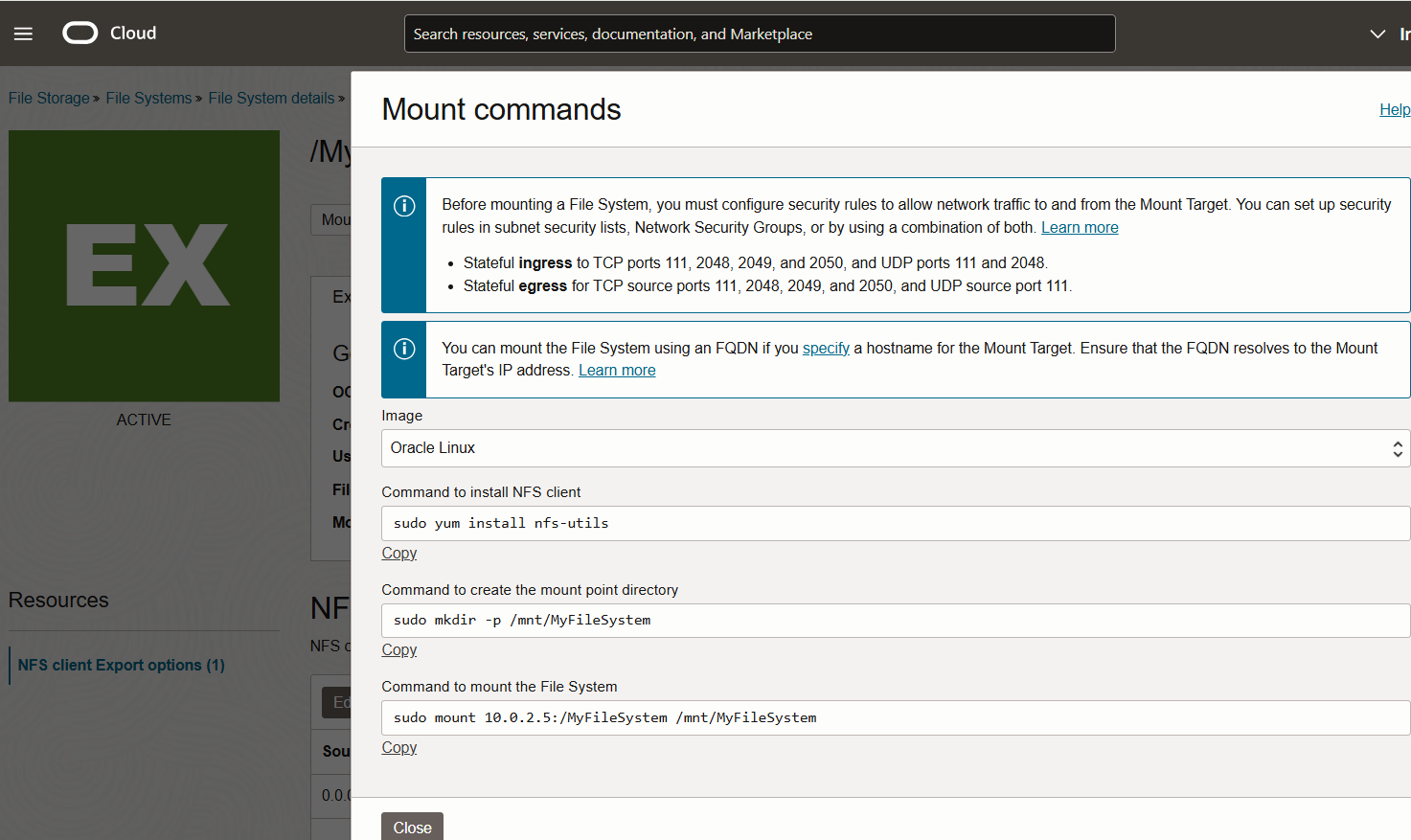

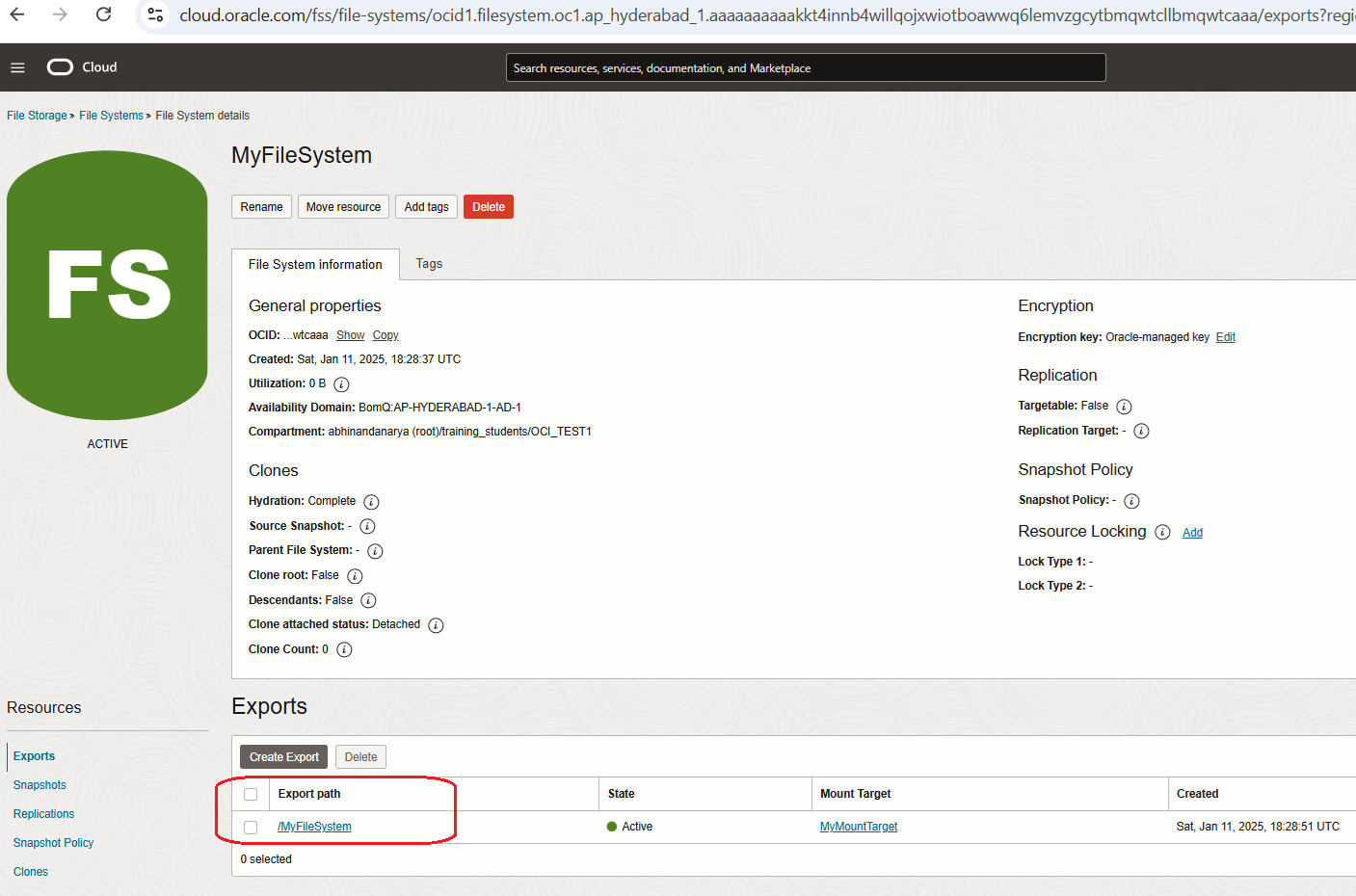

Now File System is created. Go to Export Path

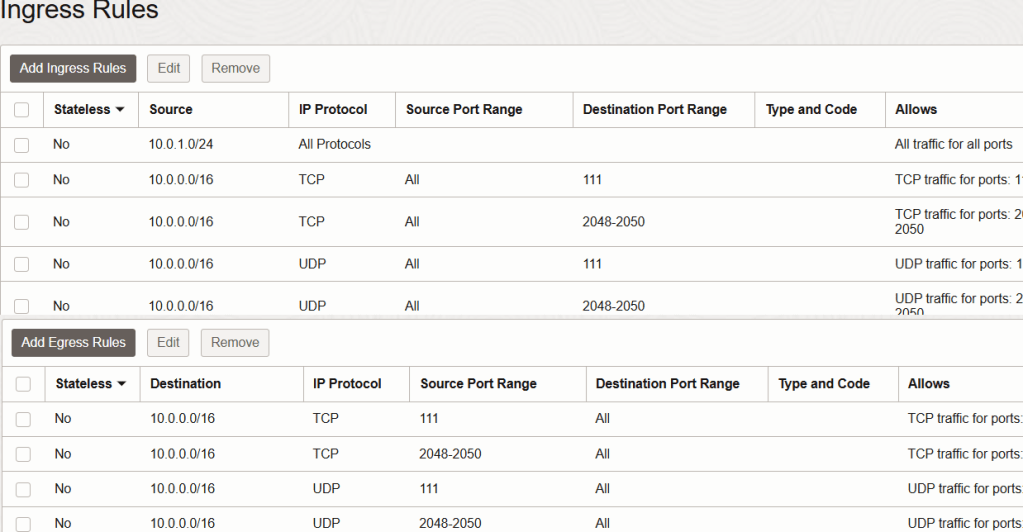

As per the Mount commands in Export Path, update the subnet security list ingress and egress rules

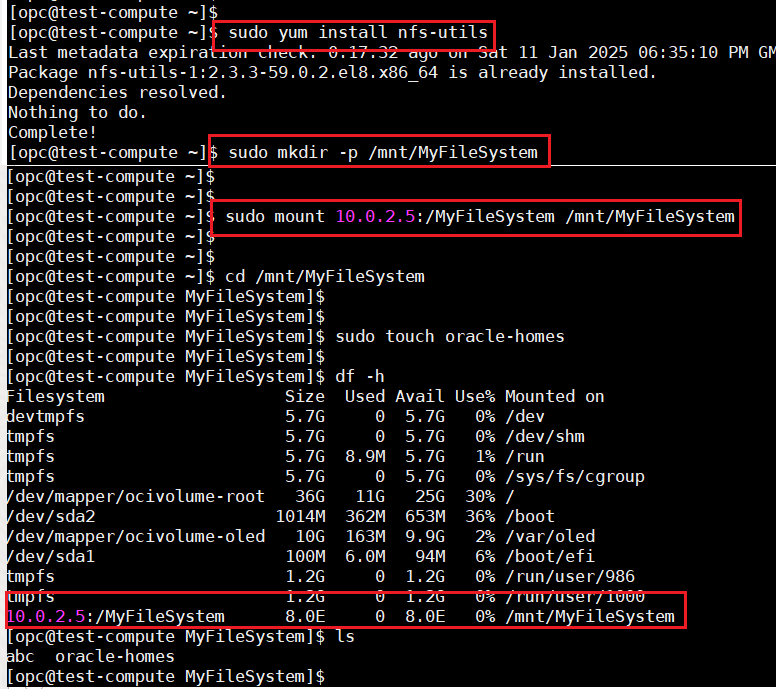

Install nfs utils and mount the file system

The file system has been mounted via NFS protocol and can now be used.

Happy Learning !!

OCI Remote Peering Connection – VCN Remote Peering across Regions in Oracle Cloud Infrastructure

Leave a reply

VCN Peering we need to have different CIDR Blocks without overlap, so I choose 10.254.0.0/16 and 172.16.0.0/16 from two different regions Hyd and Mumbai.

	VCN -1	VCN – 2
REGION	HYDERABAD	MUMBAI
VCN NAME	HYD_REGION_VCN	MUMBAI_REGION_VCN
VCN CIDR	10.254.0.0/16	172.16.0.0/16
DRG	HYD_DRG	MUMBAI_DRG
RPC	HYD_RPC	MUM_RPC

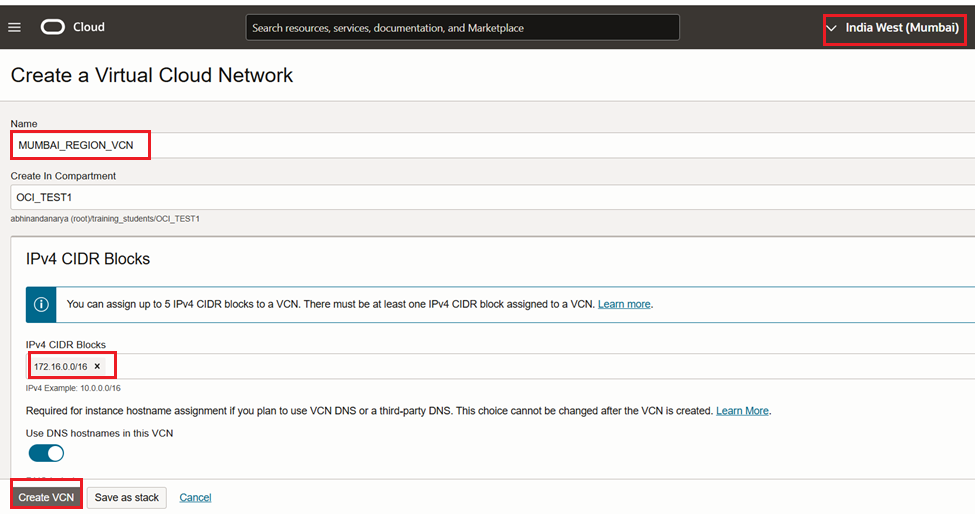

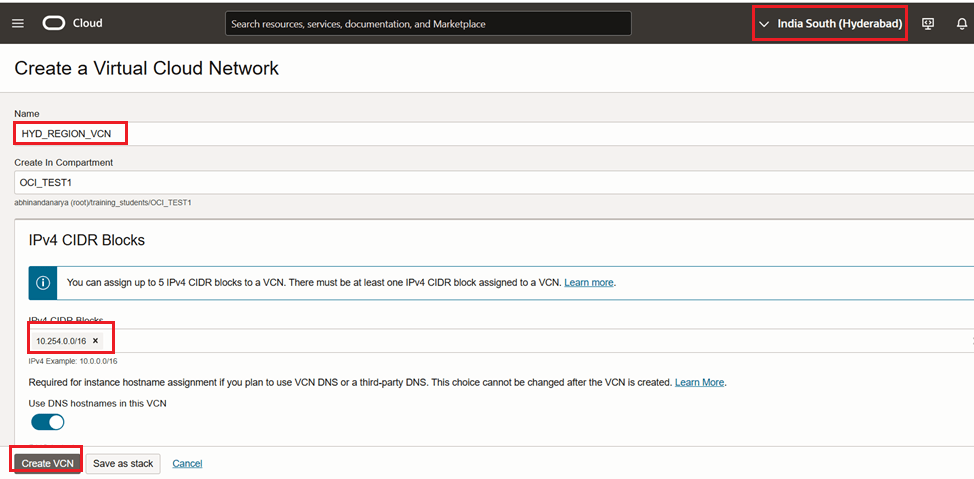

Create Two VCNs in Hyderabad and Mumbai Regions with CIDR 10.254.0.0/16 and 172.16.0.0/16

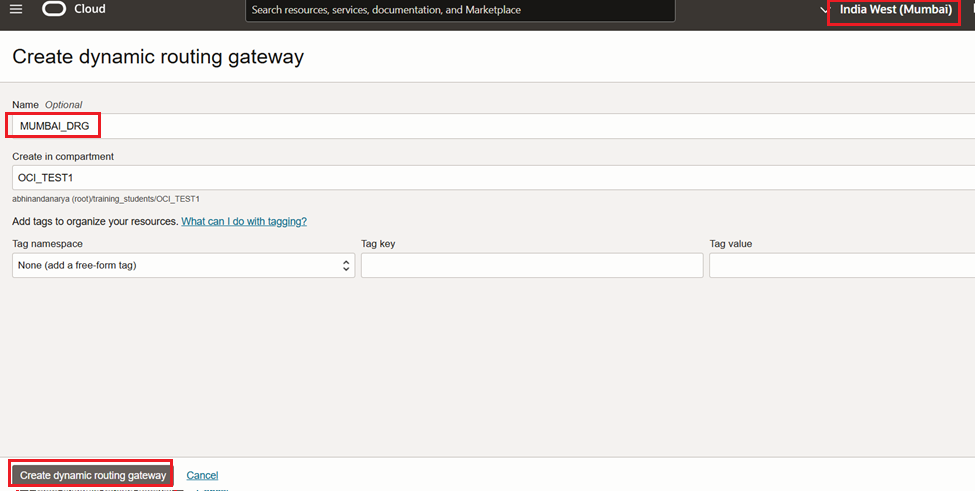

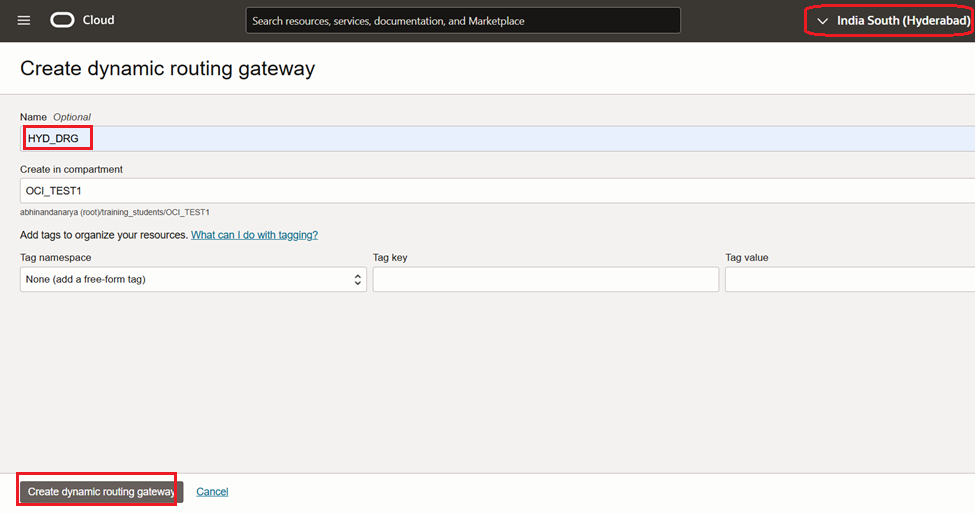

Create Two DRGs in Hyderabad and Mumbai Regions

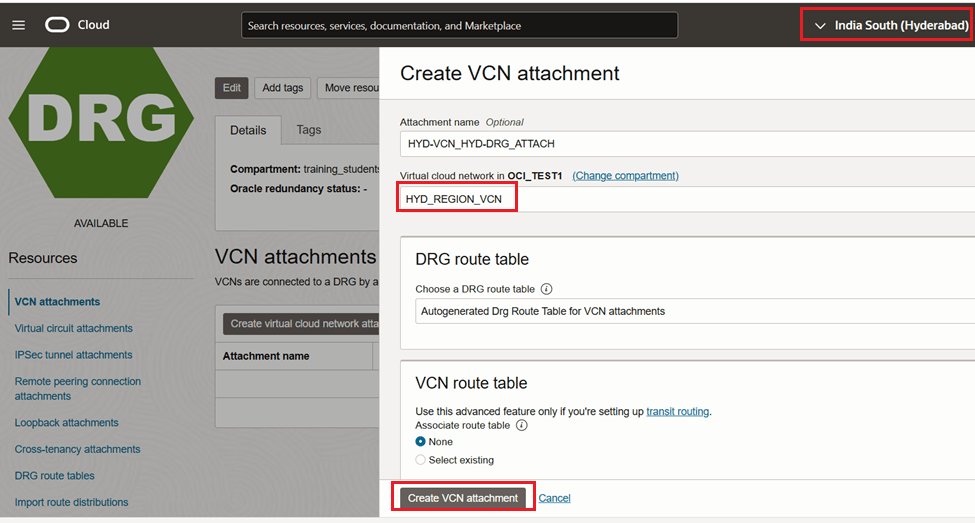

Create VCN Attachment in both DRGs, pointing to respective VCN.

In HYD DRG

In MUM DRG

Create Remote Peering Connection in both DRG regions.

In HYD DRG, create RPC

In MUM DRG, create RPC

Peering status is in NEW state both the sides

Now establish the peering between two VCNs

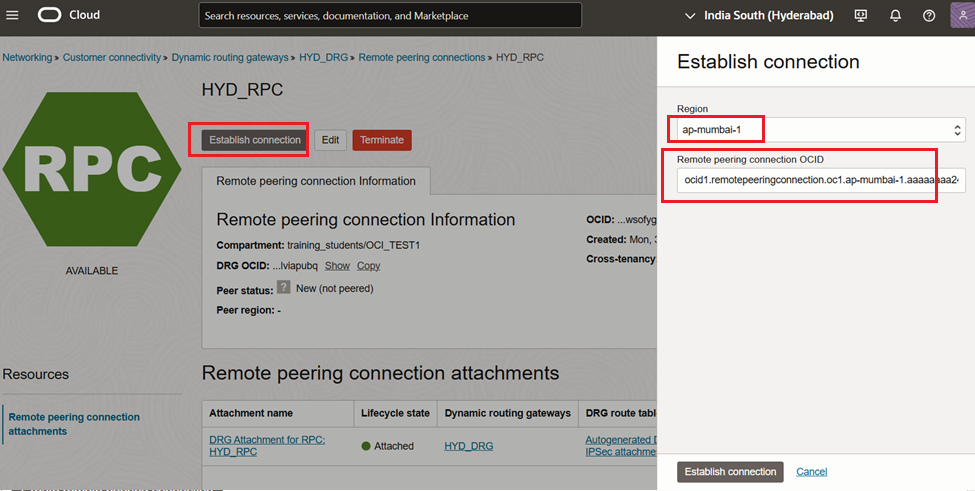

Go to any one of the RPC -> Click on Establish connection, provide Mumbai region and OCID of other RPC (Mumbai)

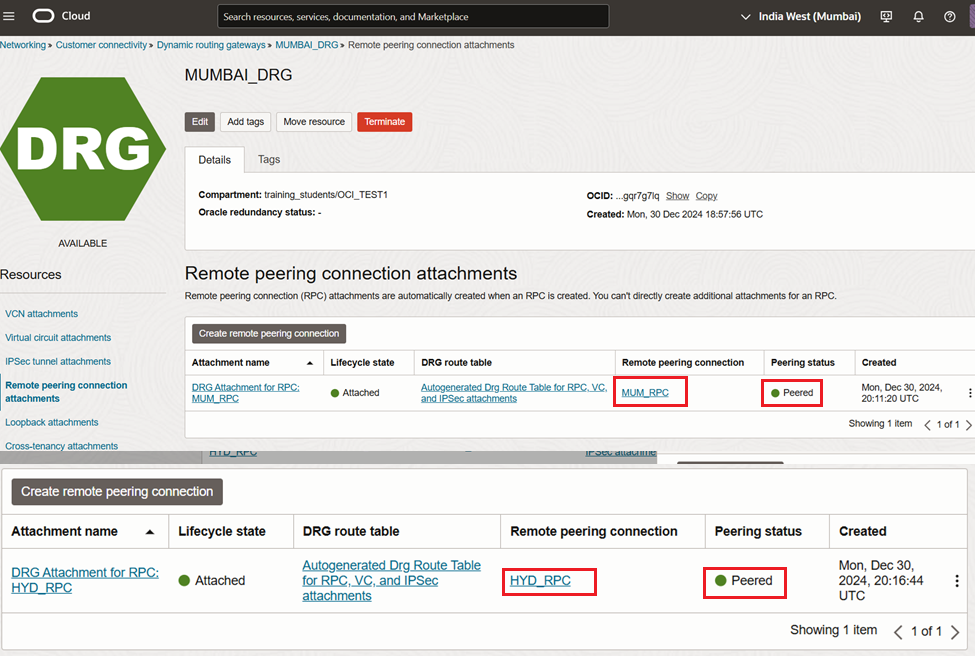

Check the Peering status from both the sides

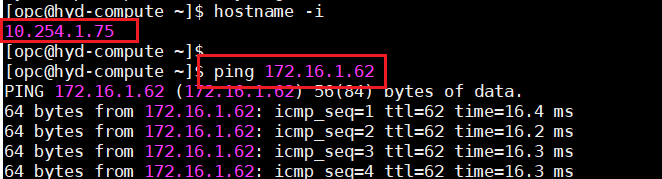

Update the Route Table and Security Rules and Verify the connectivity between VCNs

Established the communication from the CIDR 10.254.0.0/16 to 172.16.0.0/16

Happy Learning !!

OCI Load Balancer – Create and Configure Load Balancer in Oracle Cloud Infrastructure (OCI)

Leave a reply

The primary function of a load balancer in OCI is to manage incoming traffic to web applications. It acts like a gatekeeper, directing client requests across multiple servers. This setup ensures that no single server bears too much load, which in turn keeps the application running smoothly and reliably.

High Availability and Scalability

High availability is one of the key reasons for using a load balancer. It ensures that even if one server goes down, the application remains accessible by rerouting traffic to other functioning servers. Scalability comes into play when there’s a surge in user traffic. The load balancer efficiently distributes this increased traffic among servers, preventing any single server from becoming a bottleneck.

For creating Load Balancer, you need VCN and Subnets, please visit this page for the same – OCI – Creating Virtual Cloud Network(VCN) with Public and Private Subnets

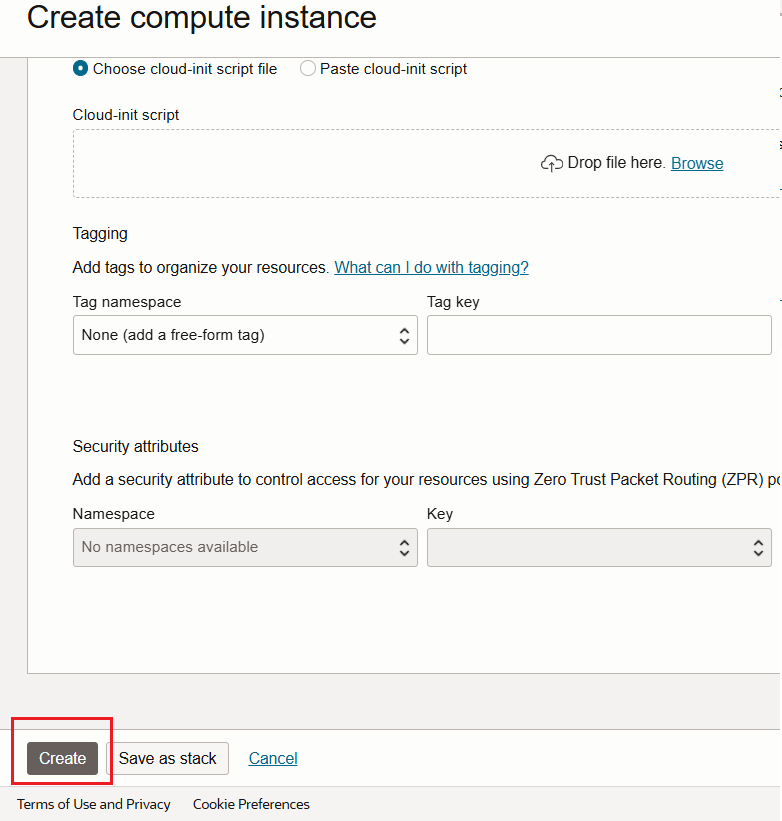

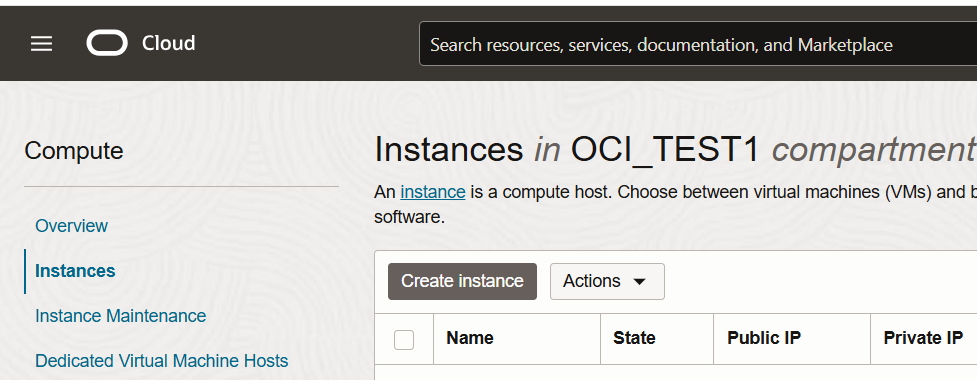

Please create Two Private Compute Instances, for Creating Compute Instance, please visit this page OCI – Create OCI Compute Instance

Create 2 webservers in Private Subnet

VCN – 10.0.0.0/16

Public Subnet – 10.0.1.0/24

Private Subnet – 10.0.2.0/24

Web_Server1 – 10.0.2.254

Web_Server2 – 10.0.2.126

Configure Web Servers:

Install Apache HTTP Server in both web servers.

sudo yum install httpd -y
sudo apachectl start
sudo apachectl status
sudo systemctl enable httpd
sudo systemctl status httpd
sudo apachectl configtest
sudo firewall-cmd --permanent --zone=public --add-service=http
sudo firewall-cmd --reload

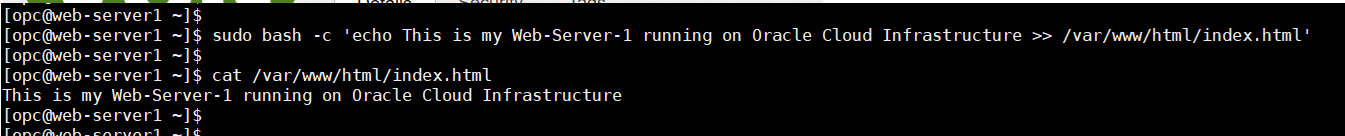

Create an index file in web-server1:

sudo bash -c 'echo This is my Web-Server-1 running on Oracle Cloud Infrastructure >> /var/www/html/index.html'
cat /var/www/html/index.html

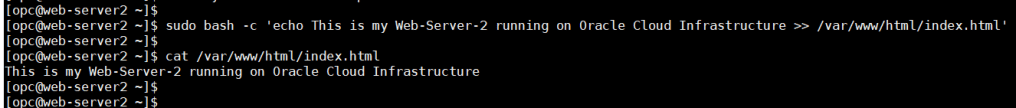

Create an index file in web-server2:

sudo bash -c 'echo This is my Web-Server-2 running on Oracle Cloud Infrastructure >> /var/www/html/index.html'
cat /var/www/html/index.html

Create and Test the Load Balancer

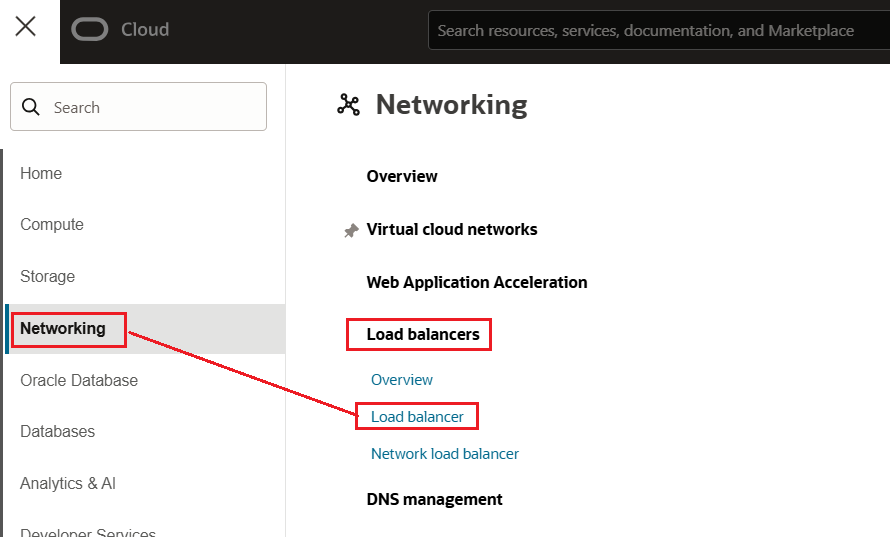

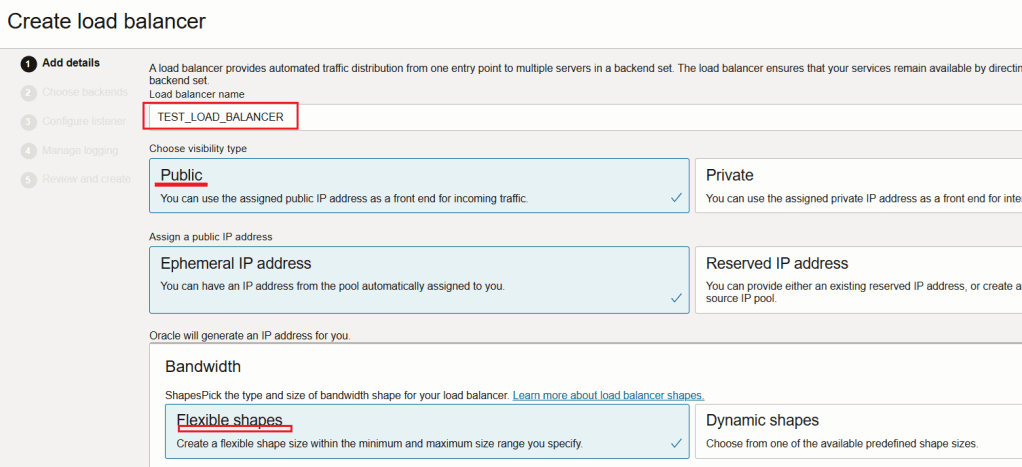

Click on Load Balancer – Provide Name, Choose Public LB and Flexible Shapes

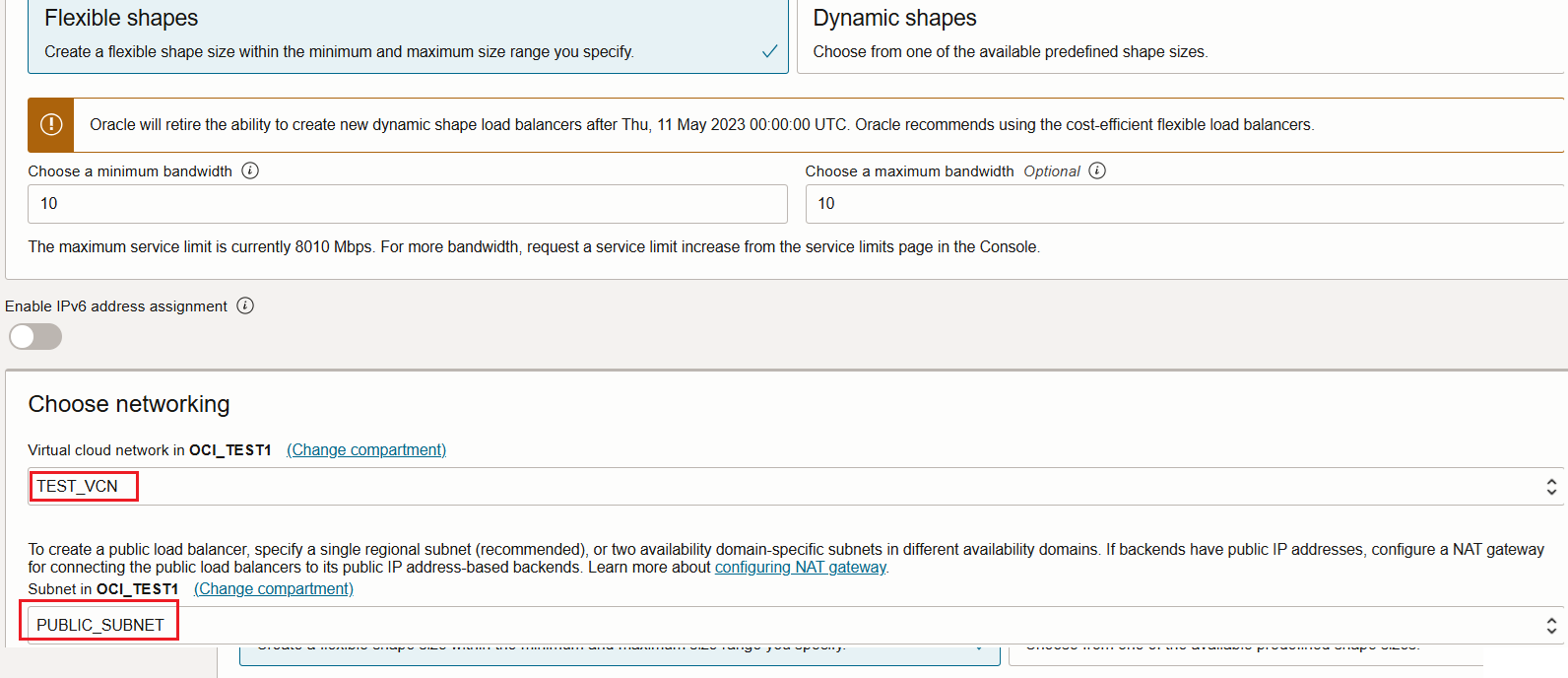

Choose VCN and Public Subnet

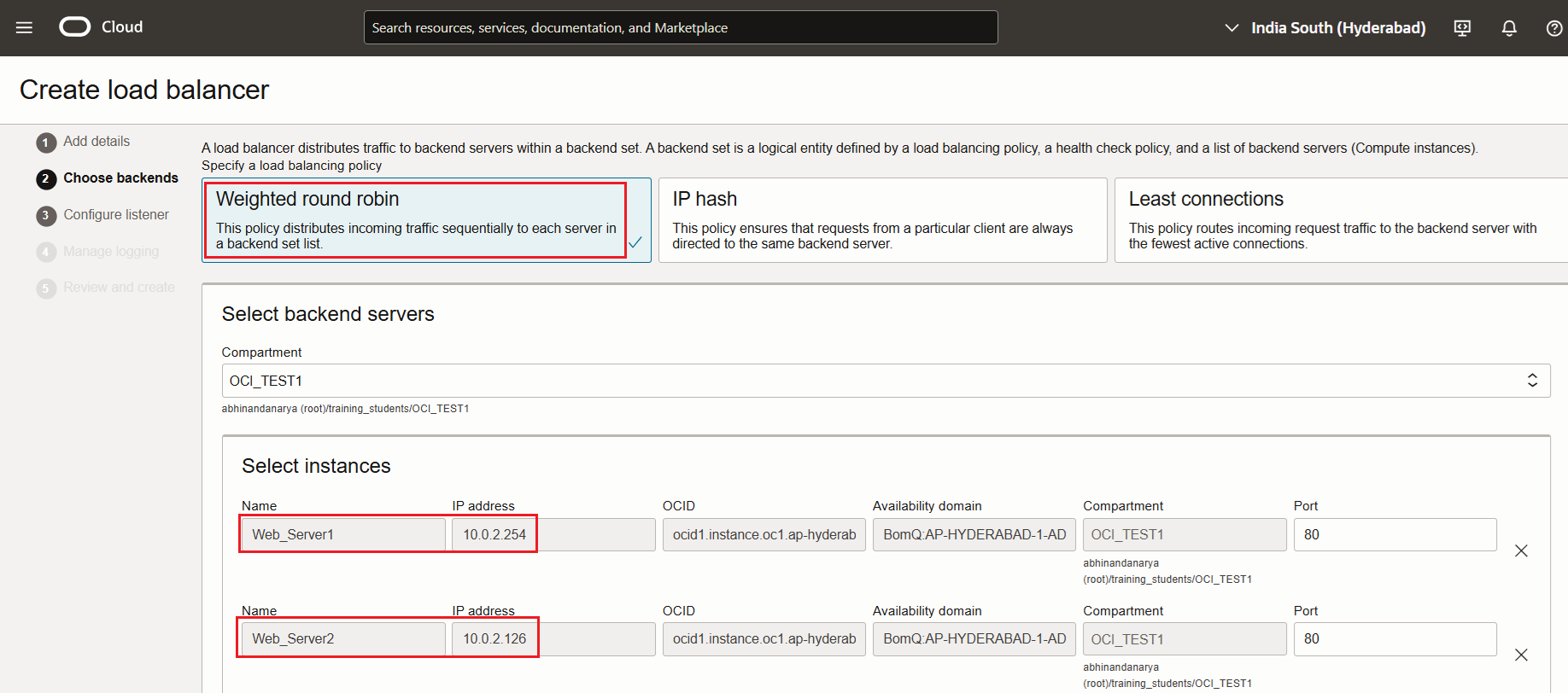

Choose Round robin Policy and choose backend Servers

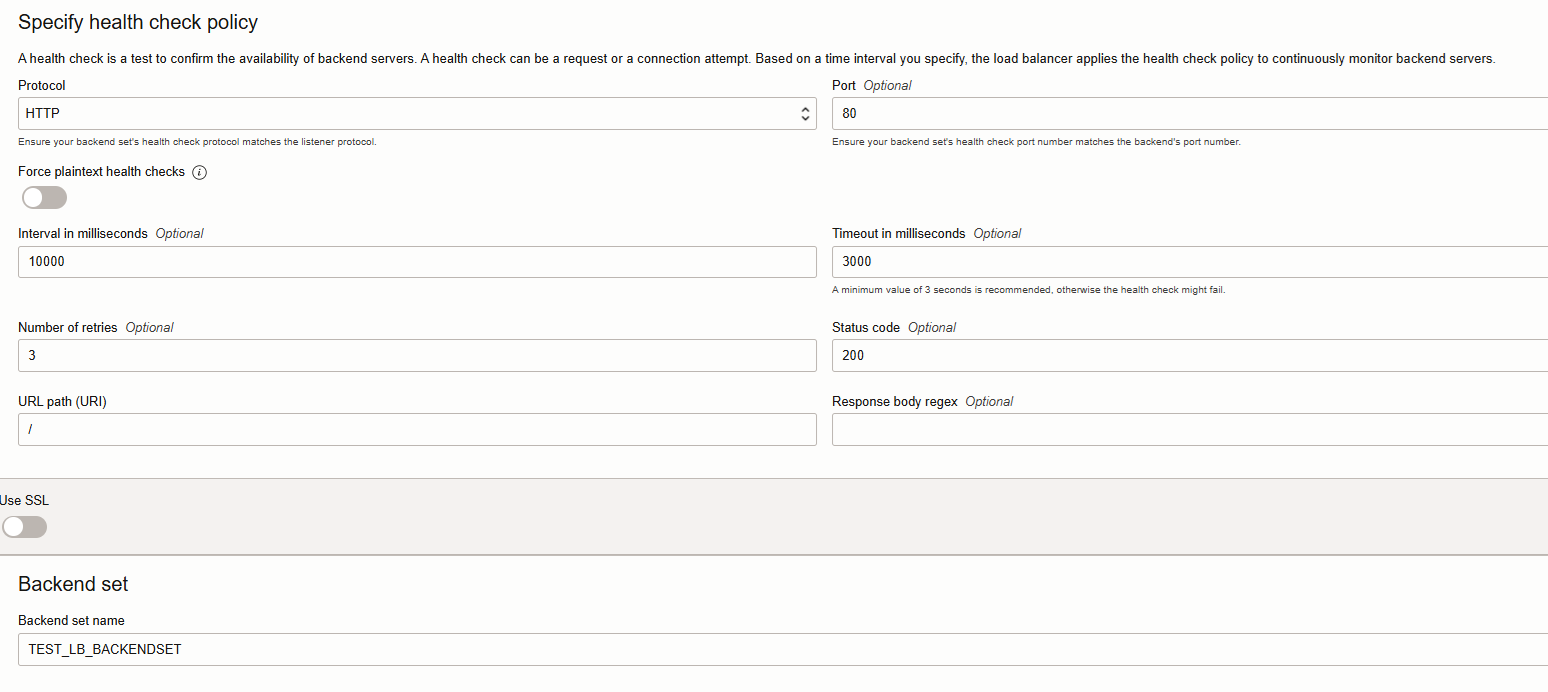

Specify health check policy for Backend Servers (HTTP and Port 80) and Provide name for Backend Set

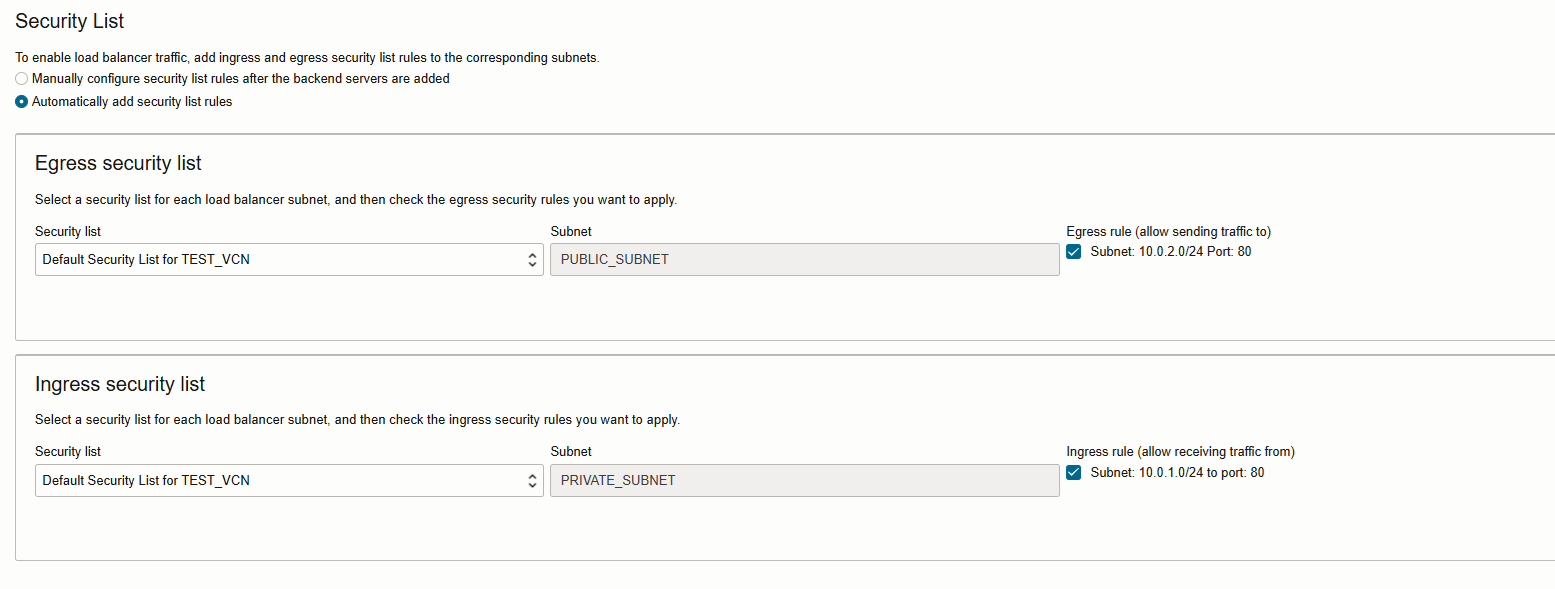

Verify Security rules

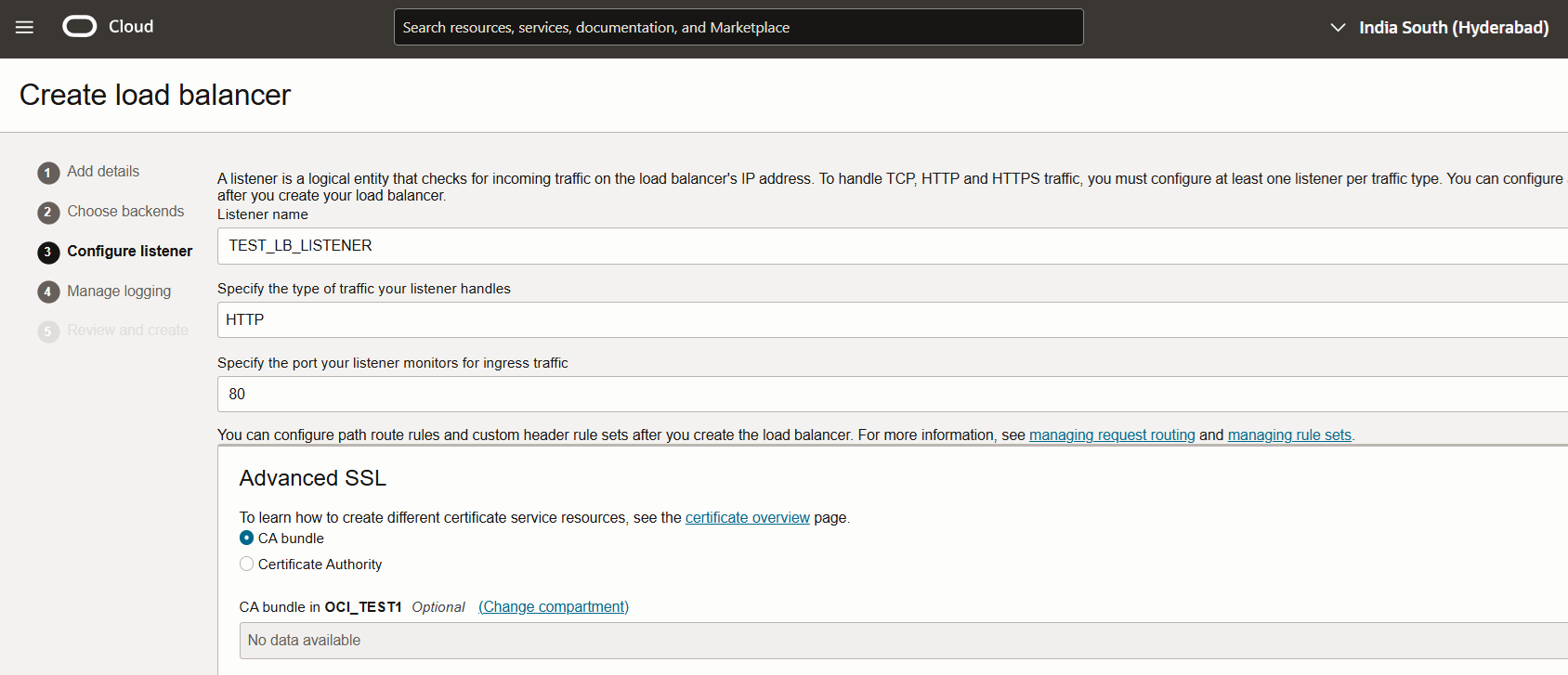

Provide Name for Listener

Review and create Load Balancer.

Review Load Balancer Health Check.

Access the Application using LB Public IP – http://129.159.23.125:443

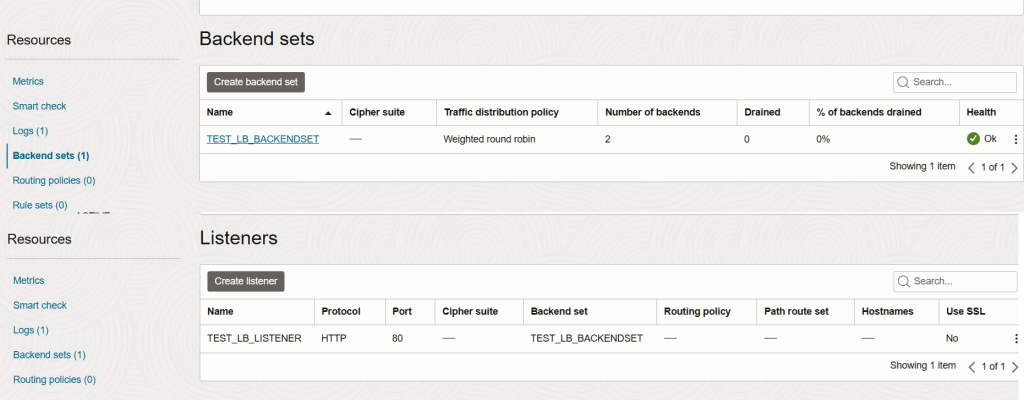

Review Backend sets and Listener Details

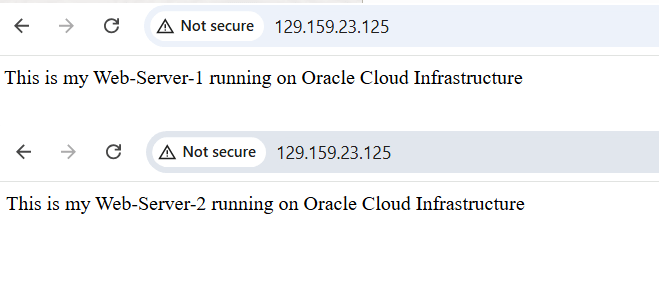

Now let us Test and Validate the Application using Load Balancer Public IP – http://129.159.23.125:443

LB is routing the requests to Web-Server 1 and Web-Server 2

Thank you !

Happy Learning !!

OCI – Creating Virtual Cloud Network(VCN) with Public and Private Subnets

3 Replies

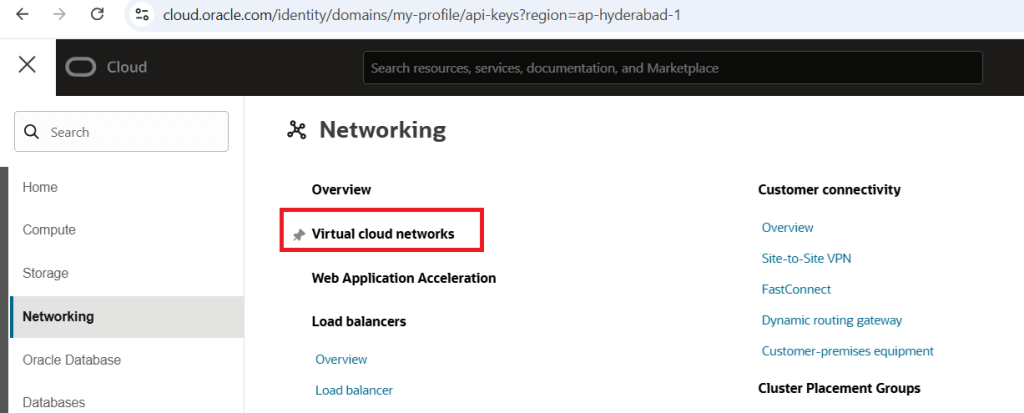

OCI Console -> MENU Networking -> Virtual Cloud Networks. Click Create Virtual Cloud Network (VCN) .

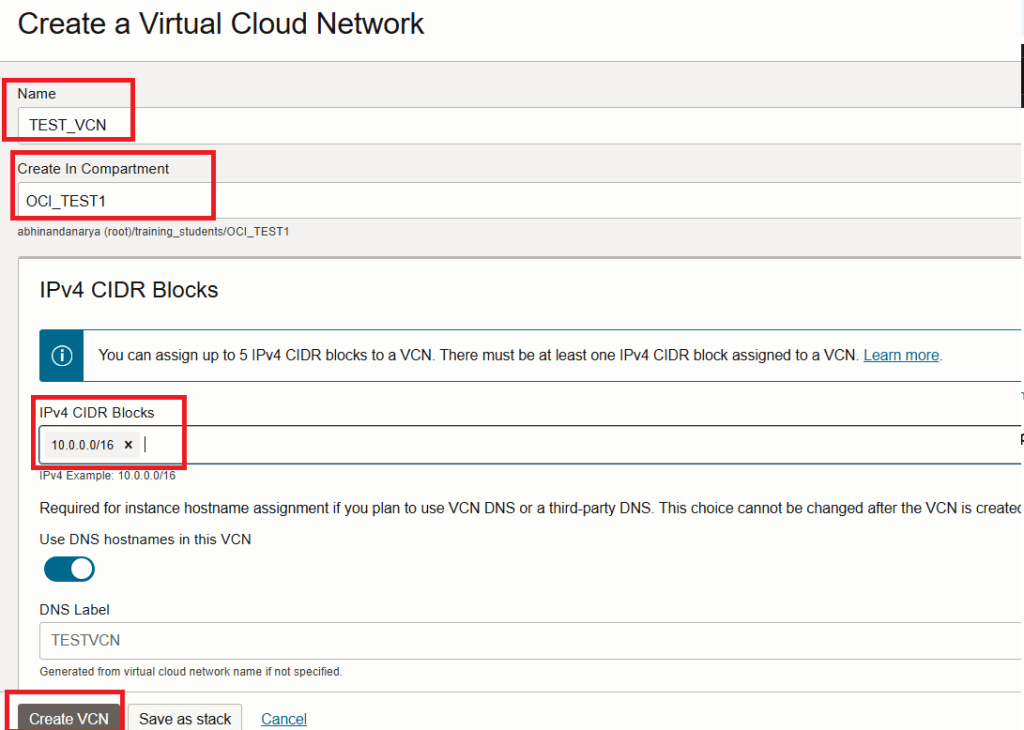

Provide VCN Name and Compartment

Choose a CIDR block – 10.0.0.0/16

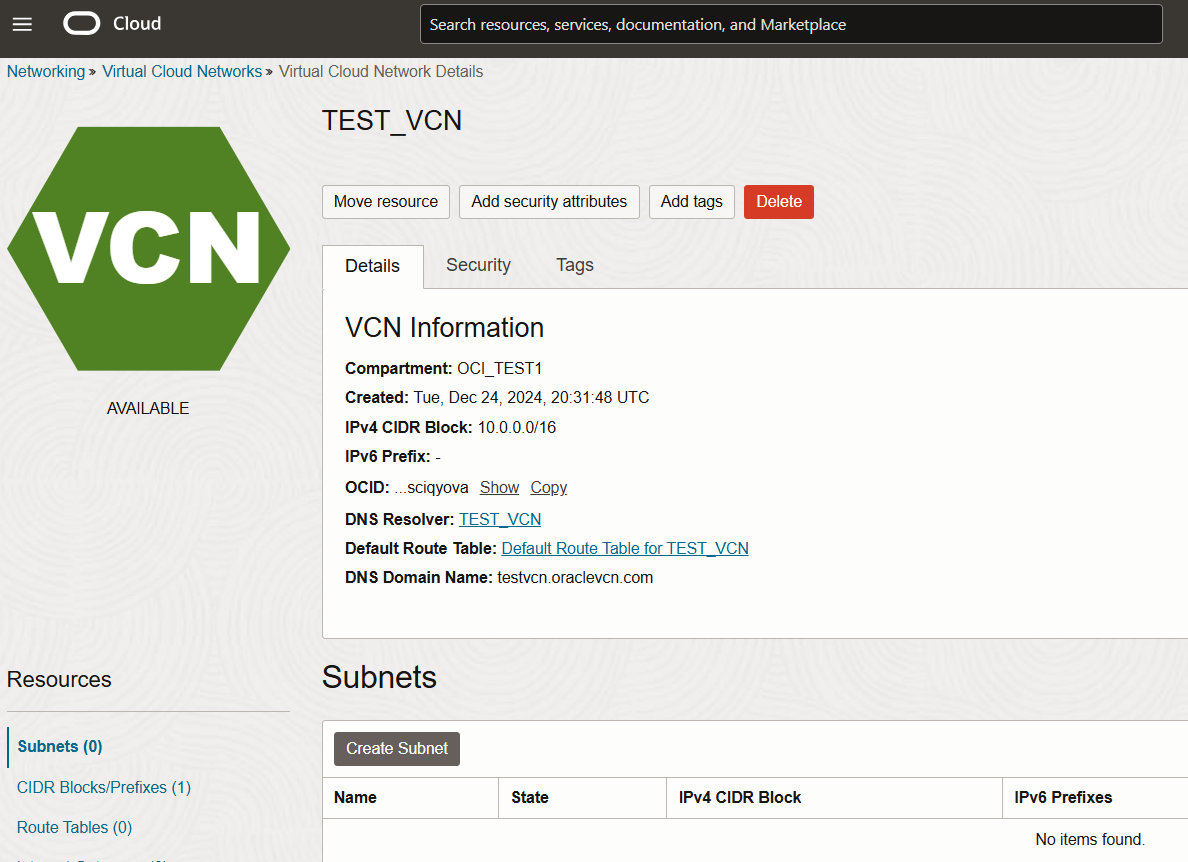

VCN Creation is completed successfully. will work on subnet creation.

Create Public Subnet

TEST_VCN -> Create Subnet

Provide Subnet name and choose compartment

Choose a CIDR block – 10.0.1.0/24

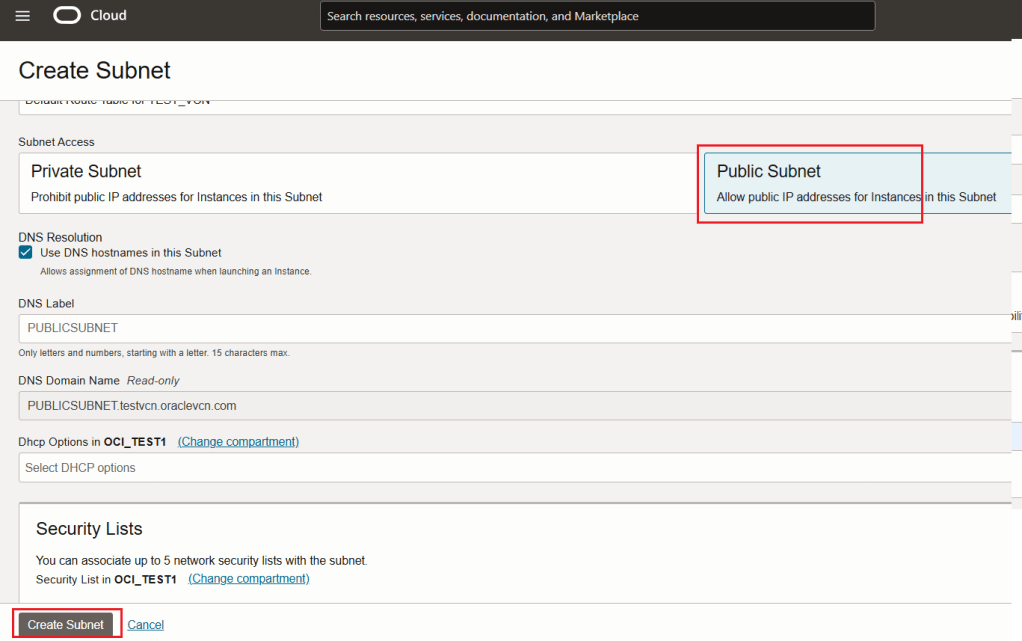

Choose Public Subnet Access and Create Subnet

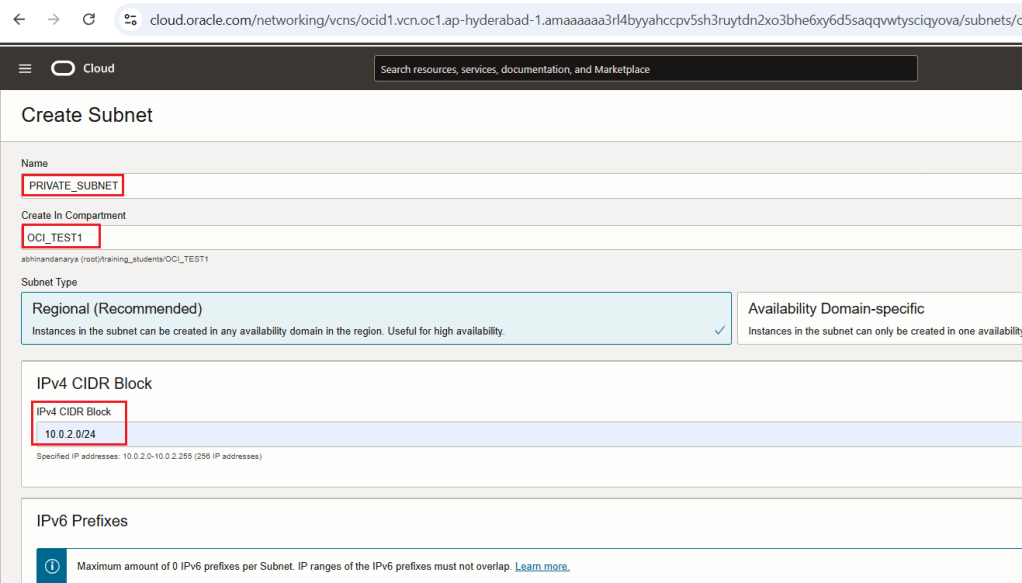

Private Subnet Creation:

TEST_VCN -> Create Subnet

Provide Subnet name and choose compartment

Choose a CIDR block – 10.0.2.0/24

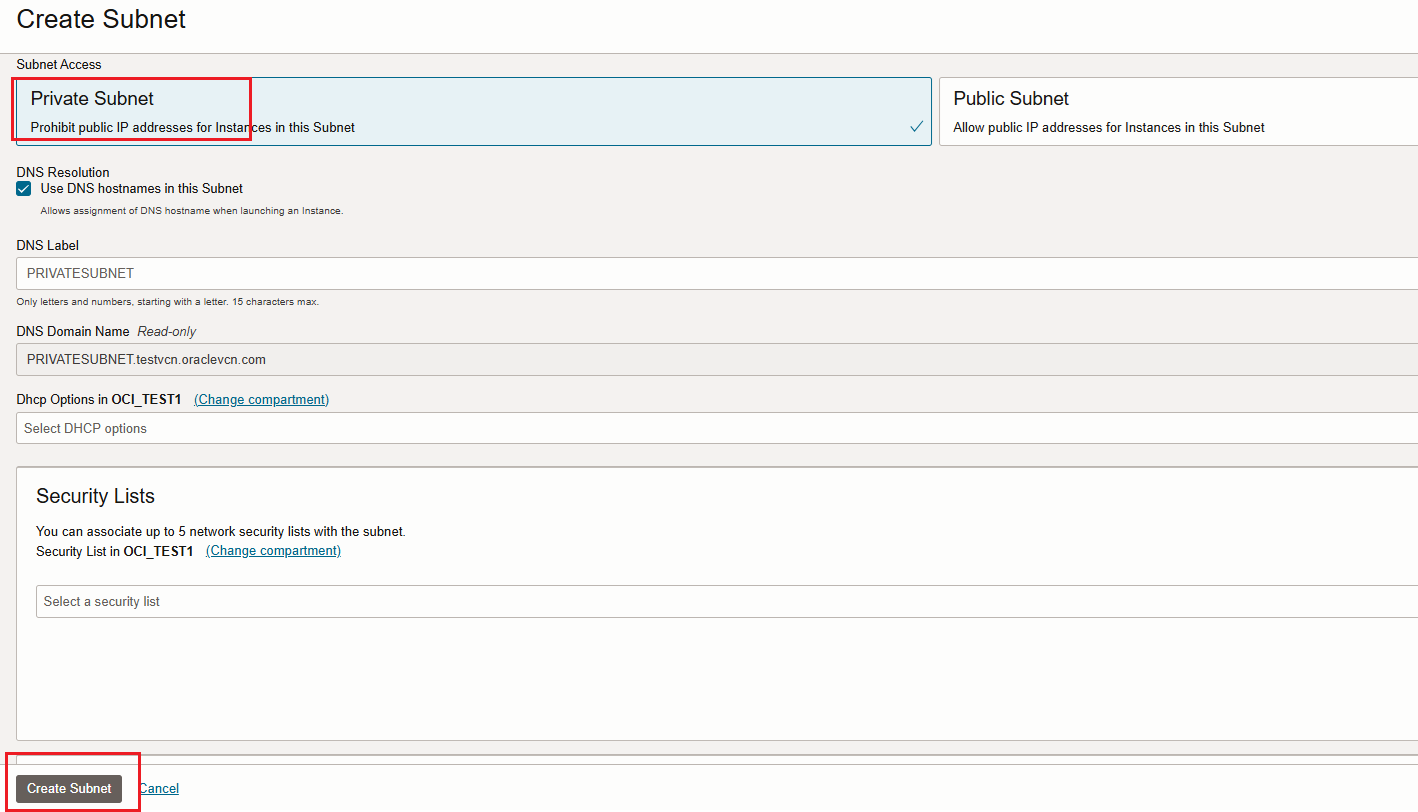

Choose Private Subnet Access and Create Subnet

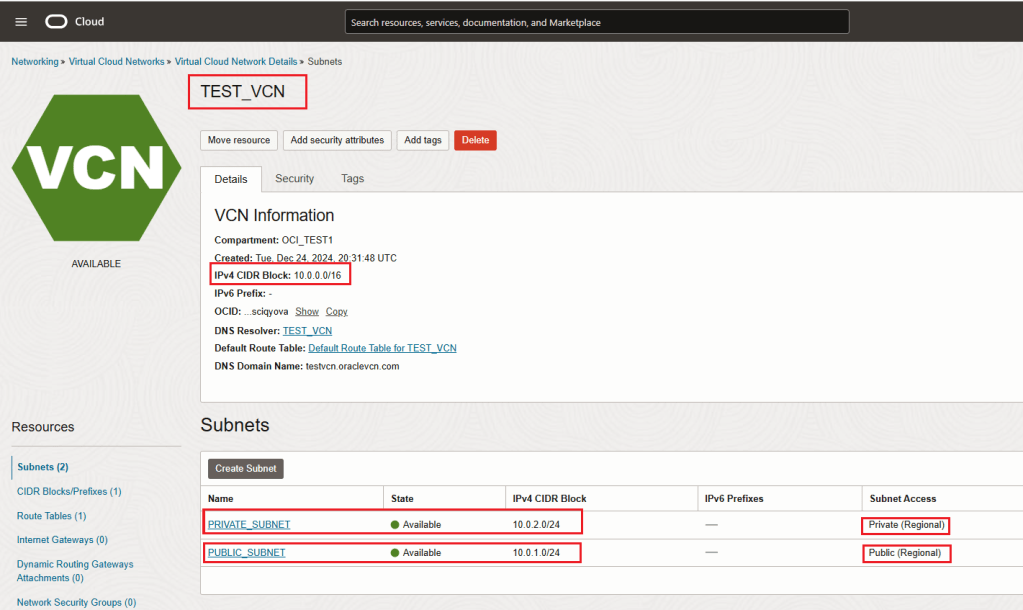

Review below VCN and Public and Private Subnet details

Thank you !

Happy Learning !!

Installation of OCI CLI in 10 minutes

Leave a reply

I choose server with Oracle Linux 8 on OCI always free to complete the setup

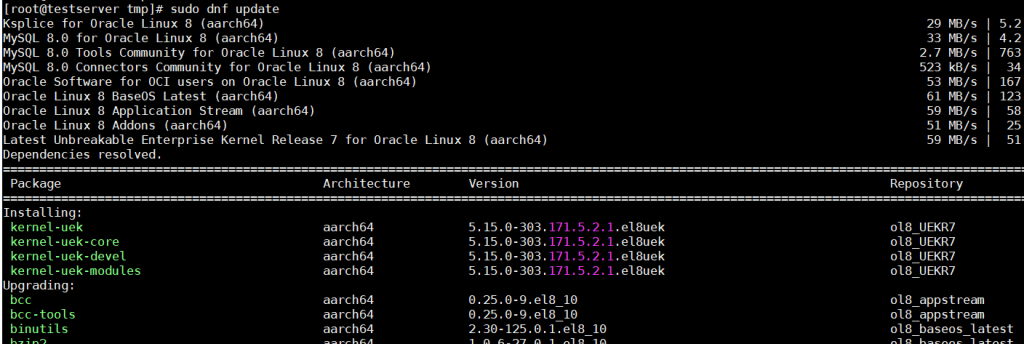

Update server before installing the CLI.

[root@testserver tmp]# sudo dnf update

Install Oracle Developer Tools

[root@testserver ~]# sudo dnf -y install oraclelinux-developer-release-el8

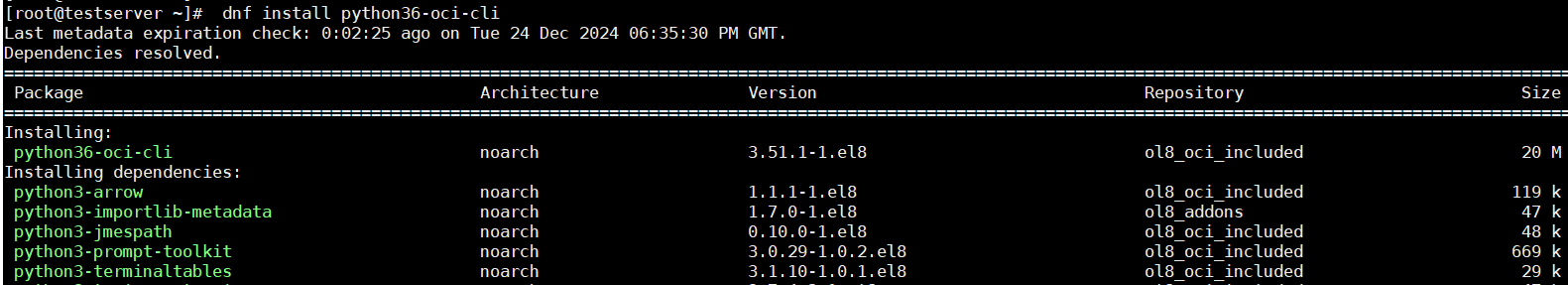

Install python

[root@testserver ~]# dnf install python36-oci-cli

Check the OCI CLI version

Setup the OCI to work with our Cloud Account

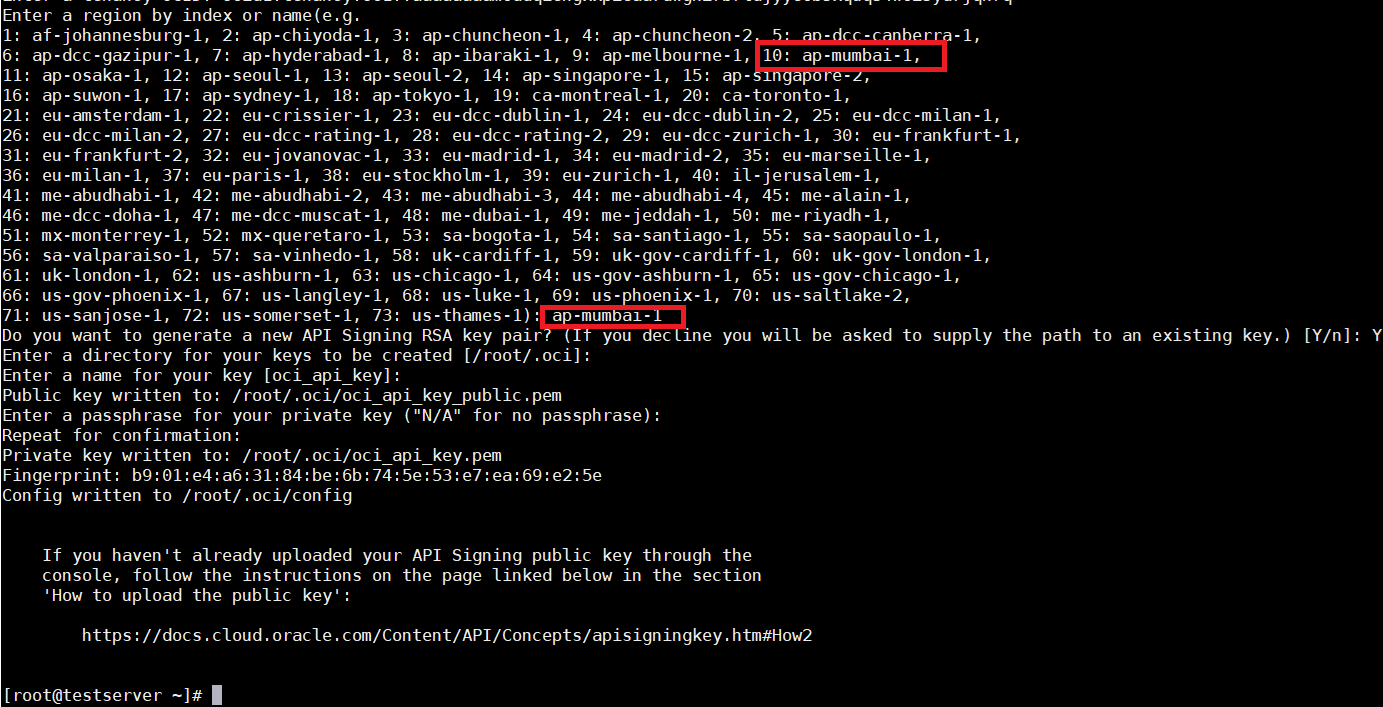

[root@testserver ~]# oci setup config

Provide OCI User Profile OCID – Profile -> User settings -> OCID

Provide OCI Tenancy OCID – Profile -> Tenancy details -> OCID

Provide region –> Number#10 or ap-mumbai-1

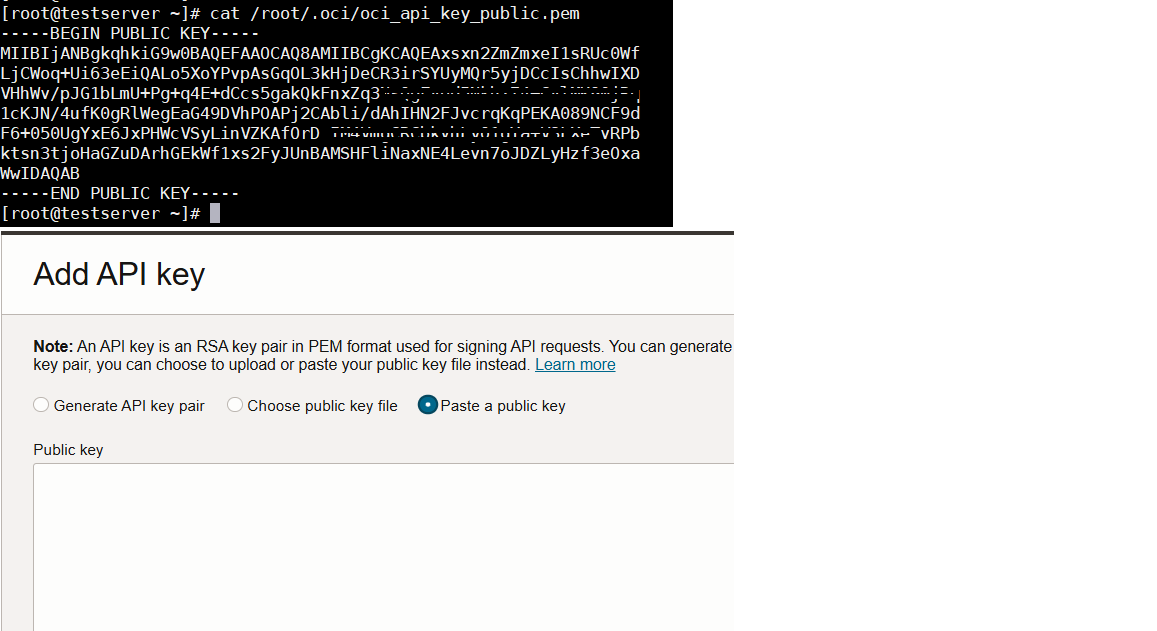

Need to upload the API key on OCI user which will be using for authentication

OCI User Profile -> User settings -> API Keys

Add API key -> Paste the public key

This Completes OCI CLI Setup – Lets validate the setup

[root@testserver ~]# oci iam availability-domain list

[root@testserver ~]# oci iam compartment list

Thank you !

Happy Learning !!
